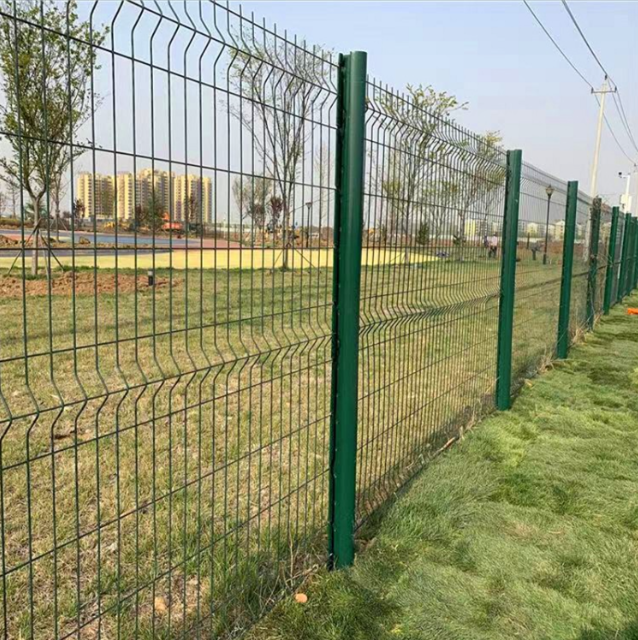

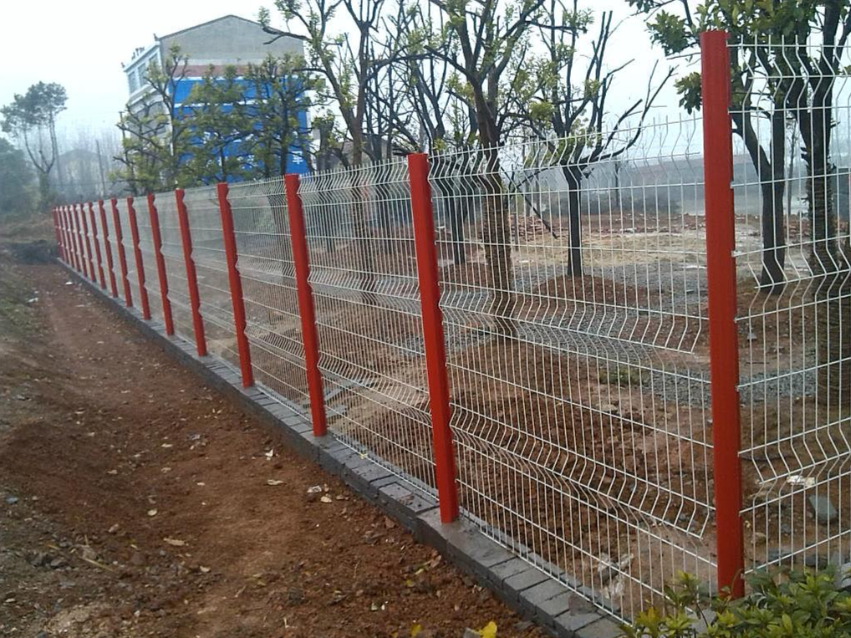

Anti-Climb 3D Reinforced V-Rib Security Fence Panel — High-Stiffness Mesh
3d Security Fence-Product Information & Security Rationale:High-security 3D V-rib panels are engineered for perimeters where physical delay is critical. The product combines a tighter mesh geometry with heavier wire gauges and multiple V-ribs to minimize all forms of mechanical attack: cutting, heaving and levering. By reducing foothold size and limiting tool access at intersections, the panel increases the time and effort required to breach, giving surveillance and response systems a material advantage.
Structural & Material Considerations:
Panels use high-tensile wire and controlled fusion welding at intersections to provide predictable shear and bending resistance. The triple-rib or quadruple-rib V-folds form a continuous reinforced section that distributes impact forces, preventing local failure under concentrated load. For the most demanding sites, specify stainless steel or a duplex system (thick HDG + powder) to ensure both mechanical performance and corrosion longevity.
Integration with Layered Security:
These panels are designed to accept a range of top-mount deterrents: concertina/razor tape, anti-climb spikes, or sensor mounts for fence-mounted detection systems. The geometry includes pre-drilled, reinforced mount points so adding deterrents does not compromise panel integrity. Combining this physical layer with CCTV, detection and lighting creates a robust perimeter regime.
Installation & Durability:
Due to heavier loads, foundations must be designed accordingly — larger concrete footings or baseplate anchoring with torque-specified bolts. Tamper-resistant fasteners and welded connections at vulnerable junctions increase long-term security and reduce maintenance intervention. Routine inspection should focus on weld integrity and fastener torque; scheduled coating checks prevent corrosion from undermining mechanical strength.
Operational Advantages:
While heavier than aesthetic panels, the high-security variant provides clear operational benefits: measurable resistance to cutting tools, less frequent replacement, and predictable behavior under forced entry attempts. These trade-offs are appropriate for utilities, correctional facilities, critical infrastructure and transport hubs that require high physical delay characteristics.
